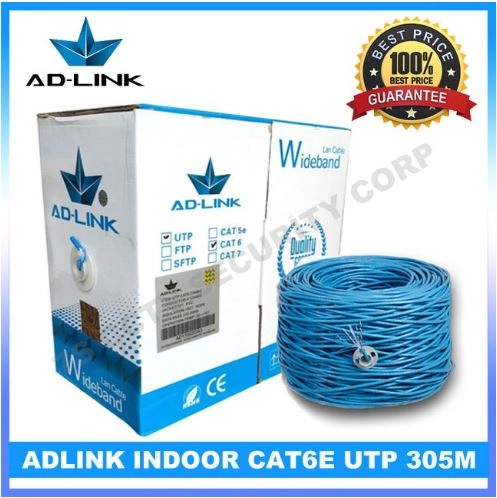

COD ADLINK CAT6E Quality Indoor UTP Ethernet LAN Cable 305m

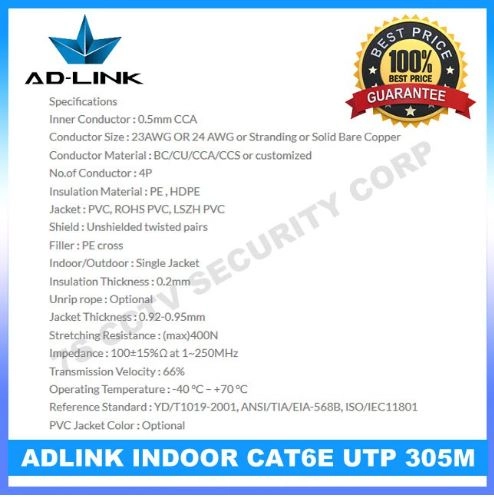

Specifications
Inner Conductor: 0.5mm CCA
Conductor Size: 23AWG
Conductor Material: CCA
No.of Conductor: 4P
Insulation Material: HDPE
Jacket: PVC
Shield: Unshielded twisted pairs
Filler: PE CROSS
Insulation Thickness: 0.2mm
Jacket Thickness: 0.92-1.02mm
Stretching Resistance: (max)250N
Impedance: 1000±15%Ω at 1~250MHz 2.5%
Pc Resistance: Imbalance
Working Capacitance: 5.4nF/100m
Insulation resistance: 10000MΩ.km
Operating Temperature: -40 °C - +70 °C
ABOUT US:
• 7S CCTV SECURITY CORPORATION
• We have 5 BRANCHES
• Anytime Technical support
• For Assistance feel free to message us
• Government registered w/ business permit
Specifications
Inner Conductor: 0.5mm CCA
Conductor Size: 23AWG
Conductor Material: CCA
No.of Conductor: 4P
Insulation Material: HDPE
Jacket: PVC
Shield: Unshielded twisted pairs
Filler: PE CROSS
Insulation Thickness: 0.2mm
Jacket Thickness: 0.92-1.02mm
Stretching Resistance: (max)250N
Impedance: 1000±15%Ω at 1~250MHz 2.5%
Pc Resistance: Imbalance
Working Capacitance: 5.4nF/100m
Insulation resistance: 10000MΩ.km
Operating Temperature: -40 °C - +70 °C
