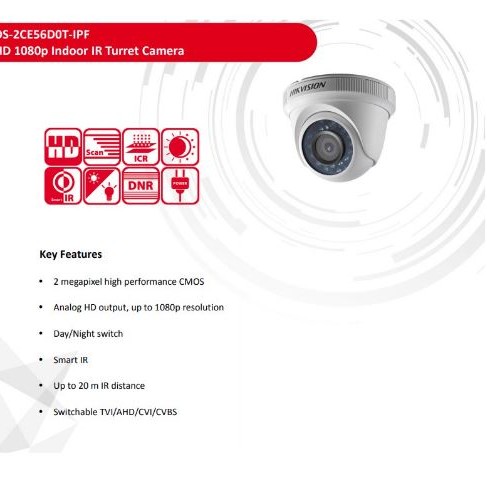

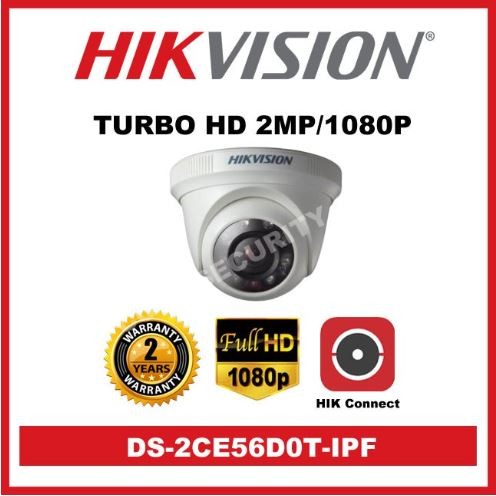

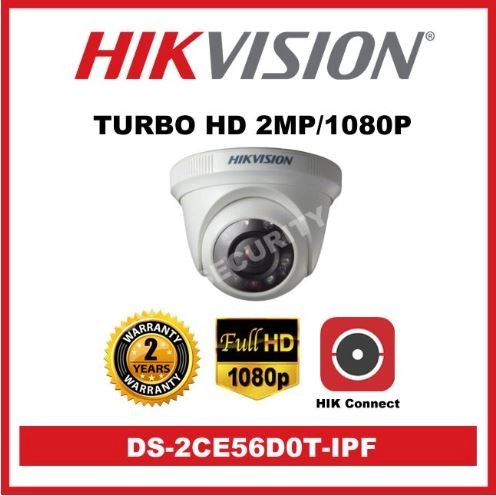

HIKVISION TURBO HD 2MP/1080P Dome Camera DS-2CE56D0T-IPF/IRPF

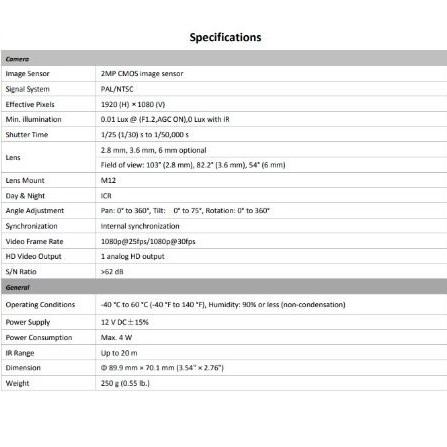

Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL / NTSC
Frame Rate PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920(H)x1080(V)
Min. Illumination 0.02 Lux @ (F1.2, AGC ON), 0 Lux With IR
Shutter Time PAL: 1/25s to 1/50, 000s
NTSC: 1/30s to 1/50, 000s
Lens 2.8mm, 3.6mm Fixed Lens
Horizontal Field Of View 103 (2.8mm)
Lens Mount M12
Day & Night IR Cut Filter
Angle Adjustment Pan: 0 to 360, Tilt : 0 To 75, Rotation : 0 To 360
Synchronization Internal Synchronization
WDR (Wide Dynamic Range) DWDR
Menu
Image Mode STD / HIGH-SAT
AGC Support
Day / Night Mode Smart / Color / BW (Black And White)
Backlight Compensation Support
DWDR Support
Language English
Functions
Brightness, Sharpness, DNR, Mirror
Interface
Video Output 1 HD Analog Output
Switch Button TVI / AHD / CVI / CVBS
General
Operating Conditions -40C To 60C (- 40F To 140F), Humidity : 90% Or Less (Non-Condensation)
Power Supply 12 VDC 15%
Power Consumption Max. 4W
Material Plastic
IR Range Up To 20m
Dimension 89.9mm x 70.1mm ( 3.54" x 2.76")
Weight Approx. 250g (0.55 lb.)
What’s in the Box?
• 1 x Hikvision DS-2CE56D0T-IPF 2MP 1080p Turbo HD IR Dome Camera
• 1 x Set of Screws and Tox
• 1 x User Manual
ABOUT US:
• 7S CCTV SECURITY CORPORATION
• We have 5 BRANCHES
• Anytime Technical support
• For Assistance feel free to message us
• Government registered w/ business permit
• Authorized Hikvision,Dahua and UNV Dealer
