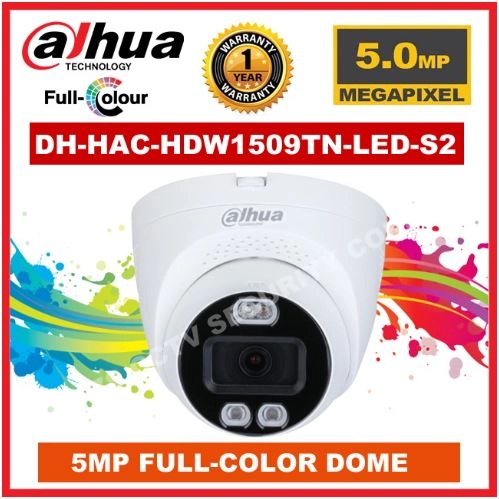

DAHUA 5MP DH-HAC-HDW1509TN-LED-S2 Full Color Dome Camera
DH-HAC-HDW1509TN-LED-S2
5MP Full-color Dome Camera
> Max 25 fps@5MP (16:9 video output)
> 120 dB true WDR, 3D NR
> 24/7 color imaging
> 40 m illumination distance
> CVI/CVBS/AHD/TVI switchable
> 3.6 mm fixed lens
> IP67, 12 V DC
* The parameters and datasheets below can only be applied to1509-S2 series.
*In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
> Max 25 fps@5MP (16:9 video output)
> 120 dB true WDR, 3D NR
> 24/7 color imaging
> 40 m illumination distance
> CVI/CVBS/AHD/TVI switchable
> 3.6 mm fixed lens
> IP67, 12 V DC
Camera
Image Sensor: 5MP CMOS
Max. Resolution: 2880 (H) × 1620 (V)
Pixel: 5MP
Scanning System: Progressive:
Electronic Shutter Speed
PAL:1/3 s–1/100,000 s
NTSC:1/4 s–1/100,000 s
S/N Ratio: > 65 dB
Min. Illumination: 0.001 Lux/F1.0, 0 Lux warm light on
Illumination Distance: 40 m (131.2 ft)
Illuminator On/Off Control
Auto; manual
Structure
Casing: Metal throughout the whole casing
Camera Dimensions: φ106.0 mm × 93.6 mm (φ4.17" × 3.69")
Net Weight: 0.48 Kg (1.06 lb)
Gross Weight : 0.67 Kg (1.48 lb)
